AC EV Charging Pile

The AC EV charging pile provides a reliable 3.5kW or 7kW charging solution for residential communities, private parking spaces, and real estate projects. Featuring a durable IP54-rated housing, 220V input, and flexible wall-mounted or floor-mounted installation, it is suitable for convenient daily electric vehicle charging.

Get A Quote

SEND US EMAIL

Warranty 1 year

Product Overview

The AC EV charging pile is designed for residential communities, real estate supporting facilities, private parking spaces, and daily electric vehicle charging applications. It supports 220V power input and provides 3.5kW or 7kW AC charging power for convenient slow charging.

With a durable sheet metal housing, IP54 protection level, and flexible wall-mounted or floor-mounted installation, the charging pile is suitable for indoor and protected outdoor parking environments. It can meet the charging needs of private EV owners during idle parking time.

DHDL AC EV charging piles support smart charging management, card-based or scan-code startup, network charging, backend control, and 4G real-time charging status monitoring. Models can be configured with optional touch screen, metering solution, surge protection, and local or online scheduled charging functions.

Technical Specifications

Item	YX-ACB-B Smart Type	YX-ACB-Z Flagship Type
Product Size	370 × 250 × 100 mm	370 × 250 × 100 mm
Installation Method	Wall-mounted / Floor-mounted	Wall-mounted / Floor-mounted
Operating Temperature	-20℃ to 65℃	-20℃ to 65℃
Protection Level	IP54	IP54
Output Power	3.5 / 7kW	3.5 / 7kW
Standby Power Consumption	≤0.1% of output power	≤0.1% of output power
Screen Size	No screen	4.3-inch HD touch screen optional
Network Charging	Supported	Supported
Operation Management	Supported	Supported
Startup Method	Card swiping	Card swiping / QR code scanning
Backend Control	Supported	Supported
Scheduled Charging	Not supported	Local / online setting supported
Metering Method	Metering chip	Metering chip / 485 electricity meter
Surge Protection	Board-mounted	Board-mounted surge protector

Product Features

Flexible Installation Design

The compact structure supports both wall-mounted and floor-mounted installation, making it suitable for residential communities, private parking spaces, and small charging sites.

Smart Network Charging

Network charging, backend control, operation management, and 4G real-time charging status monitoring help improve charging management and user convenience.

Convenient Startup Methods

The charging pile supports card swiping, and the flagship model can also support QR code scanning, providing flexible charging access for different operation scenarios.

Reliable Protection Performance

With IP54 protection, wide operating temperature range, low standby power consumption, and surge protection options, the system supports safe and stable daily EV charging.

Applications

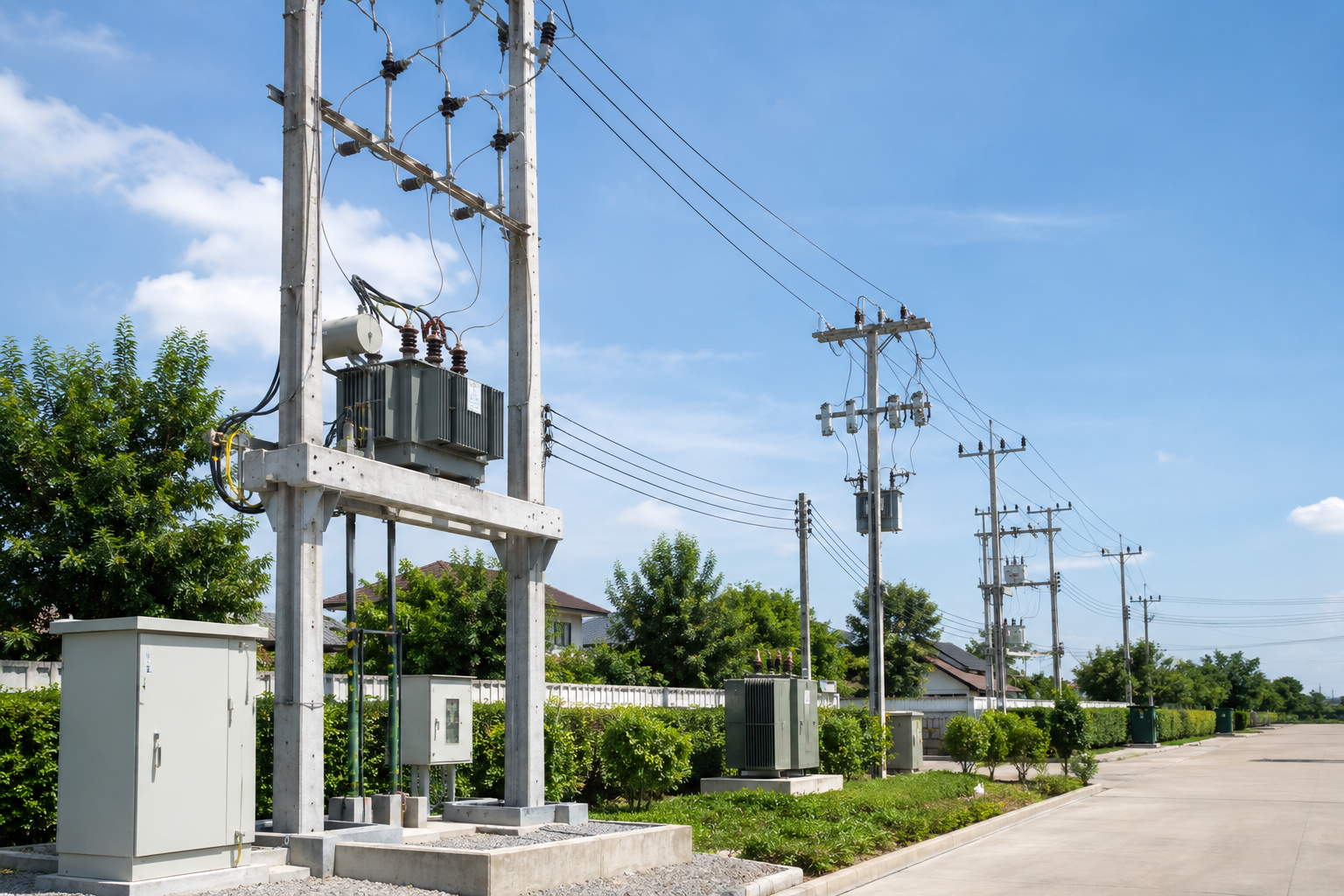

Utility Distribution Networks

Reliable transformer solutions for urban and rural power distribution systems, helping ensure stable voltage conversion and continuous power supply.

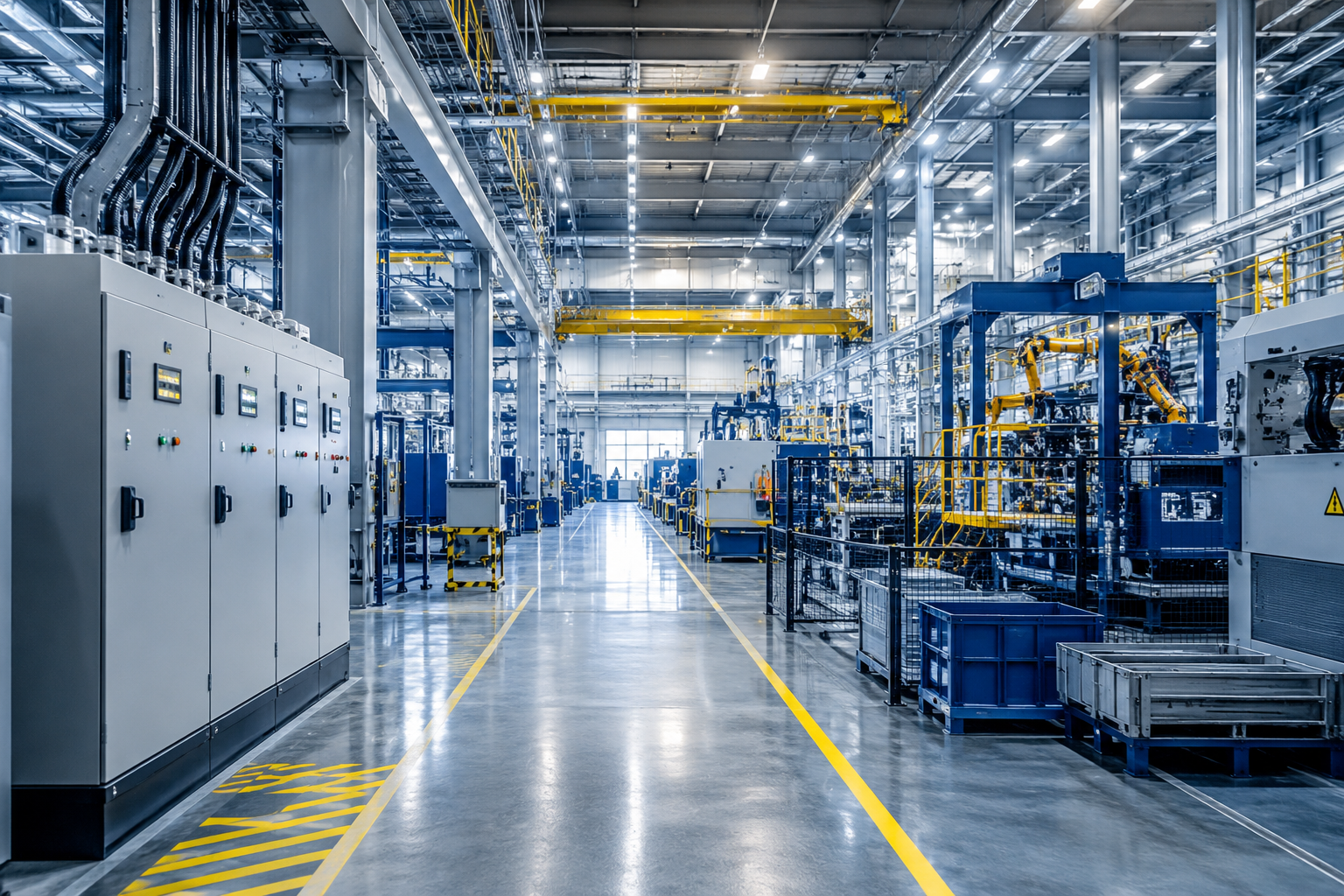

Industrial Facilities

Suitable for factories, workshops, production lines, mining sites, and industrial power systems that require long-term stable operation.

Renewable Energy Projects

Applied in solar power plants, wind farms, energy storage stations, and microgrid systems for power conversion and distribution.

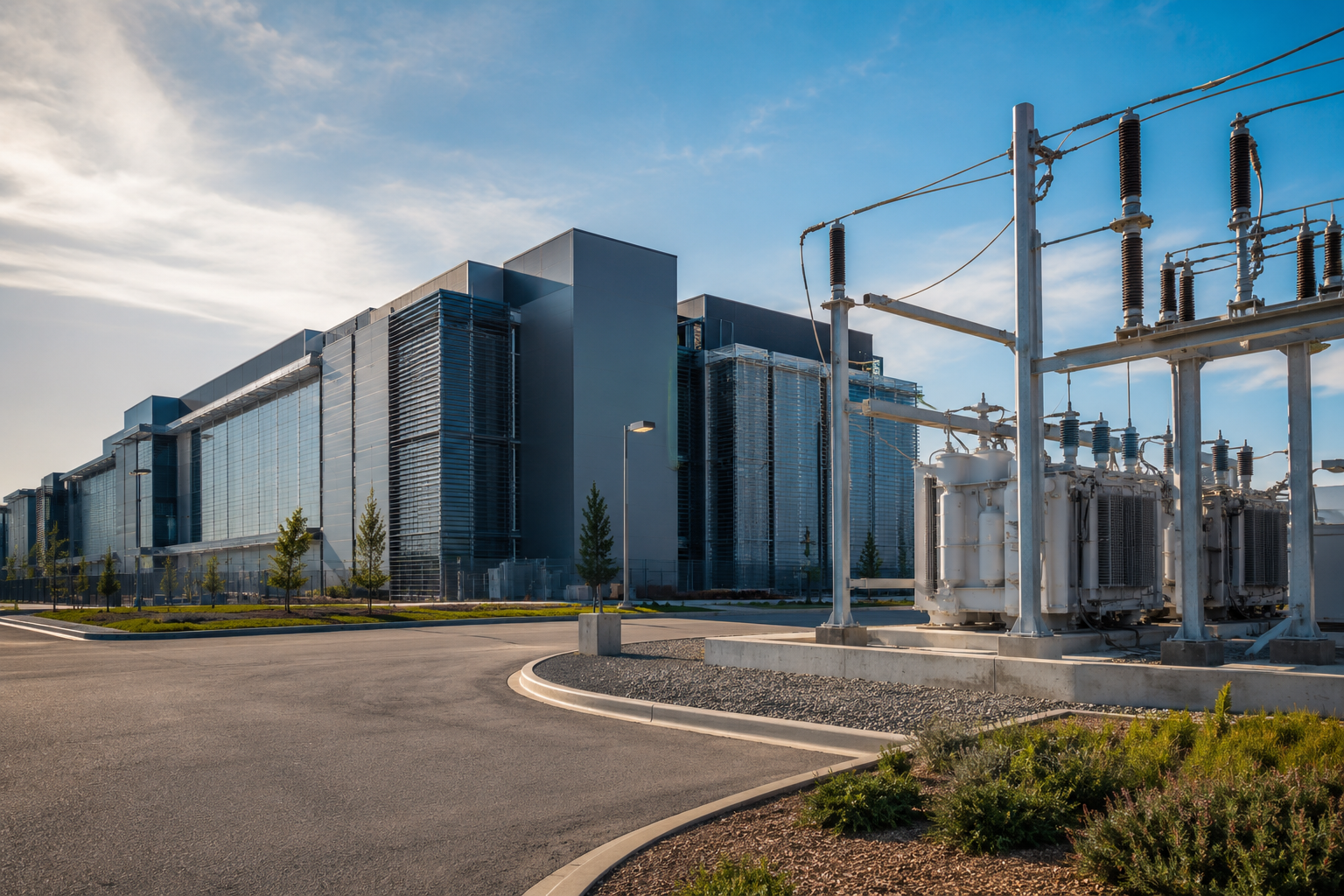

AI Data Center Power Infrastructure
