Energy Storage & Microgrid Solutions
DHDL provides transformer, substation and power distribution solutions for battery energy storage systems and microgrids, supporting bidirectional power flow, renewable energy integration, grid connection and flexible power management.
Flexible Power Infrastructure for Dynamic Energy Flows
Energy storage and microgrid systems combine batteries, renewable generation, utility power and local loads within the same electrical network. Transformers, switchgear and distribution equipment must support changing operating modes, bidirectional power flow and project-specific power requirements.
Bidirectional Power Flow
Unlike conventional one-way distribution systems, battery storage must both absorb and deliver power. Transformers and distribution equipment therefore need to support reliable operation during charging and discharging cycles.
Renewable Energy Variability
Solar and wind generation changes with operating conditions. Energy storage helps absorb excess generation and release stored energy when required, creating continuously changing power flows across the system.
Grid-Connected & Islanded Operation
Microgrids may operate together with the utility grid or independently under specific operating conditions. The power infrastructure must support stable distribution across different system operating modes.
Peak Demand & Capacity Management
Energy storage systems may support peak shaving, load shifting and capacity management. Transformer and distribution capacity must be matched to project power ratings and expected charge-discharge demand.
How Energy Storage & Microgrid Systems Work
Energy storage and microgrid systems connect utility power, renewable generation, battery storage and local loads through a common electrical distribution network. Power can move in multiple directions depending on generation, demand and operating mode.
Utility Grid
The microgrid can exchange power with the external utility network, importing electricity when required or supporting grid interaction during energy storage operation.
Main Transformer & Substation
Transformers and substation equipment provide voltage transformation, switching and protection between the utility connection and the project distribution network.
MV Distribution Network
The medium-voltage network links energy storage, renewable generation and local loads through a common power distribution infrastructure.
Renewable Generation
Solar or wind generation can feed power into the microgrid, supplying local loads or charging the battery energy storage system.
Battery Energy Storage System
Battery storage charges and discharges through power conversion equipment, enabling energy shifting, capacity support and flexible interaction with the wider electrical system.
Facility & Local Loads
Local electrical loads can receive power from the utility grid, renewable generation or stored energy according to the operating condition of the microgrid.
Power Transformation and Distribution for Energy Storage & Microgrid Systems
DHDL supports the electrical infrastructure connecting battery energy storage, renewable generation, local loads and the utility grid. Transformer, switchgear and substation configurations can be matched to PCS voltage, project power rating, grid requirements and operating conditions.
Energy Storage Step-Up
Power from the PCS is transformed to the medium-voltage level required by the energy storage collection and distribution network.
MV Collection & Distribution
Multiple battery blocks and power conversion units can be connected through medium-voltage switchgear and distribution equipment to form a coordinated project power network.
Substation & Grid Connection
Main transformers, switchgear and substation equipment connect the energy storage or microgrid project to the utility network at the required grid voltage.
Microgrid Power Distribution
Power infrastructure can be configured to connect renewable generation, battery storage and facility loads through a flexible common distribution network.
Transformer, Switchgear and Substation Integration
DHDL supports coordinated power transformation and distribution equipment configurations for battery storage and microgrid projects.
Share your project power rating, PCS output voltage, grid voltage and installation requirements with DHDL to discuss a suitable equipment configuration.
Power Infrastructure for Energy Storage & Microgrid Projects
From battery energy storage and renewable integration to substations and grid connection, reliable electrical infrastructure supports flexible power flow across modern energy storage and microgrid systems.

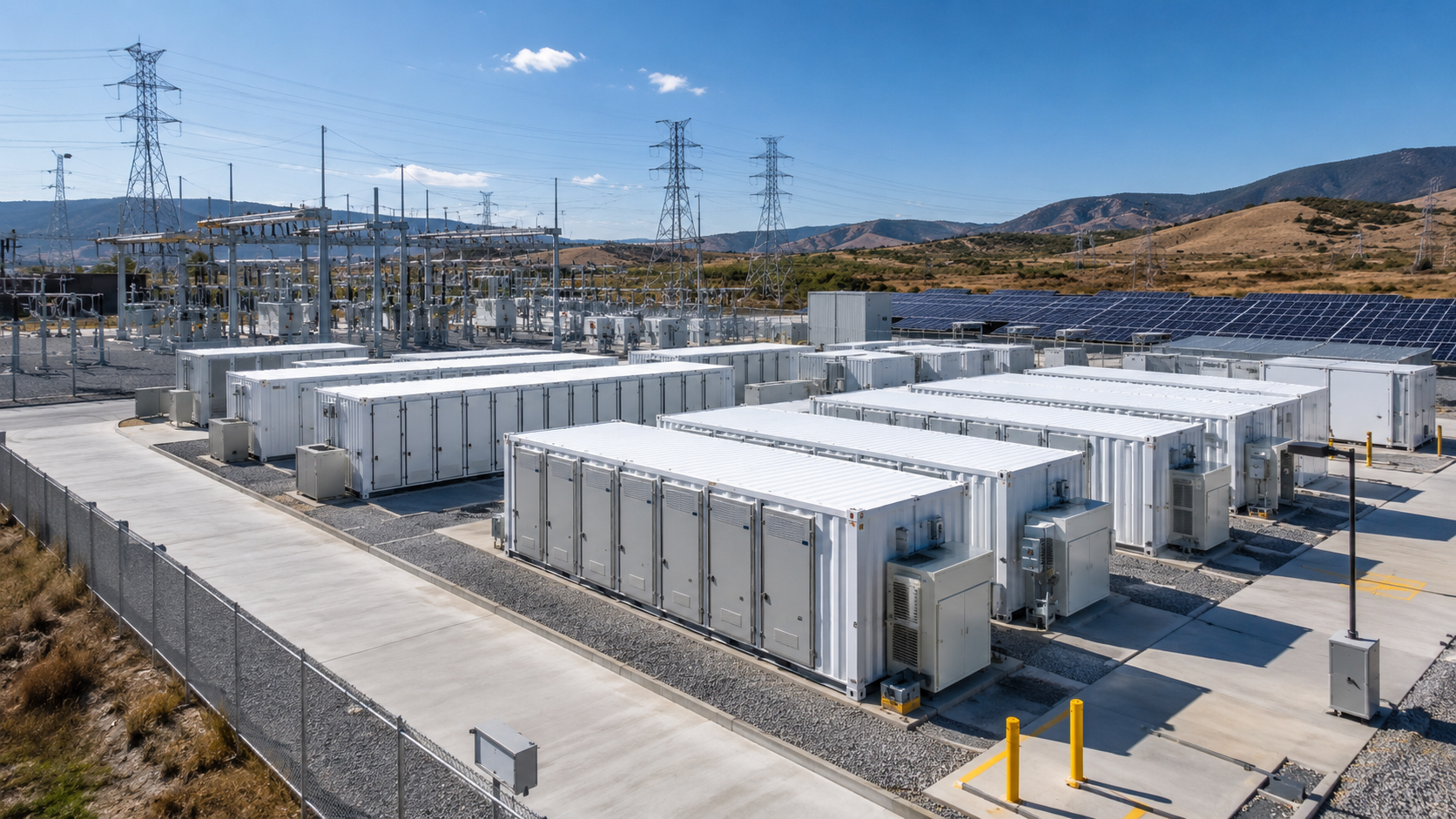

Energy Storage & Microgrid Projects
Integrated power infrastructure connects energy storage, renewable generation, local loads and the utility grid.

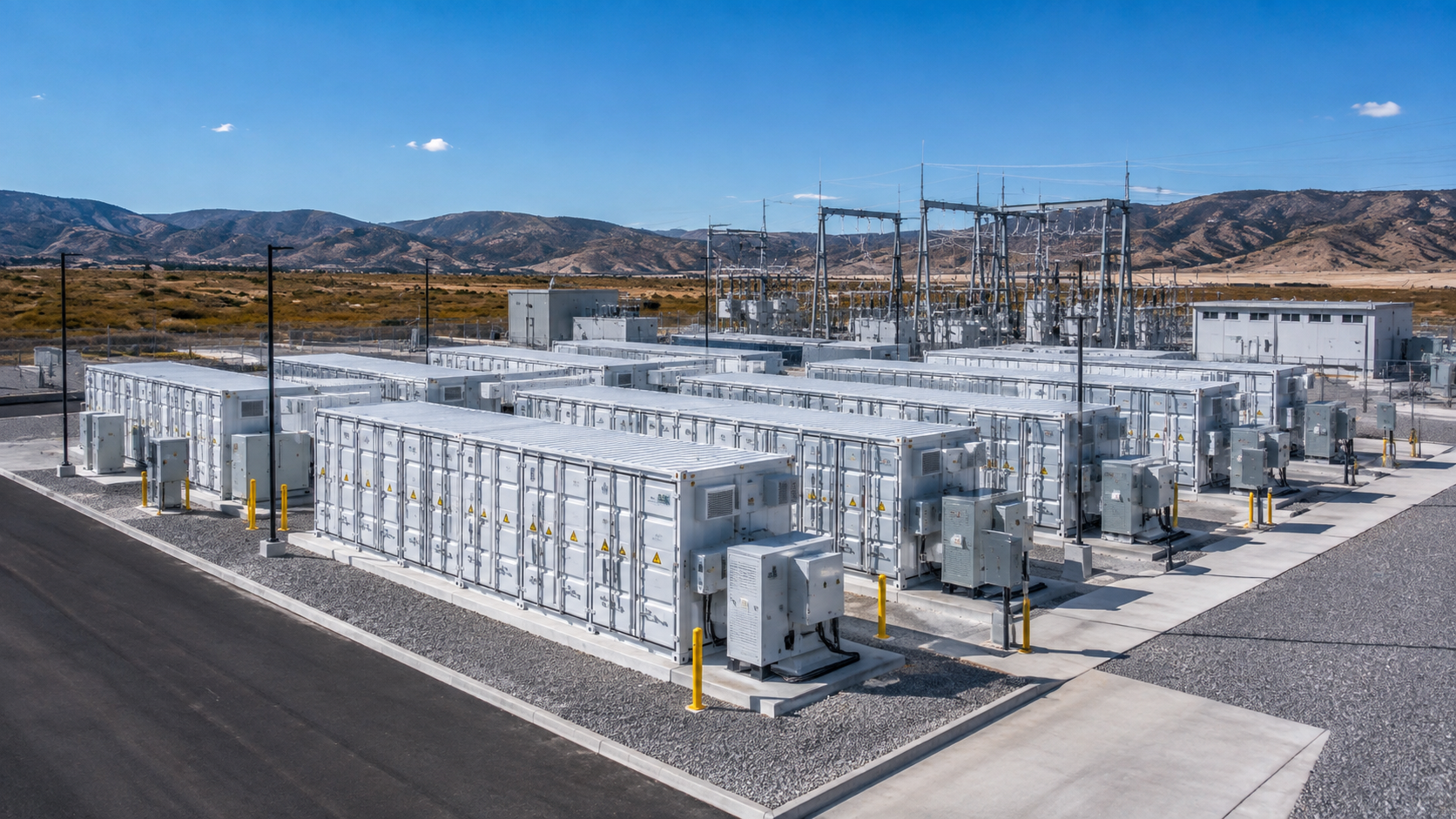

Battery Energy Storage Systems
Battery and power conversion systems support charging, discharging and flexible energy management across the project.

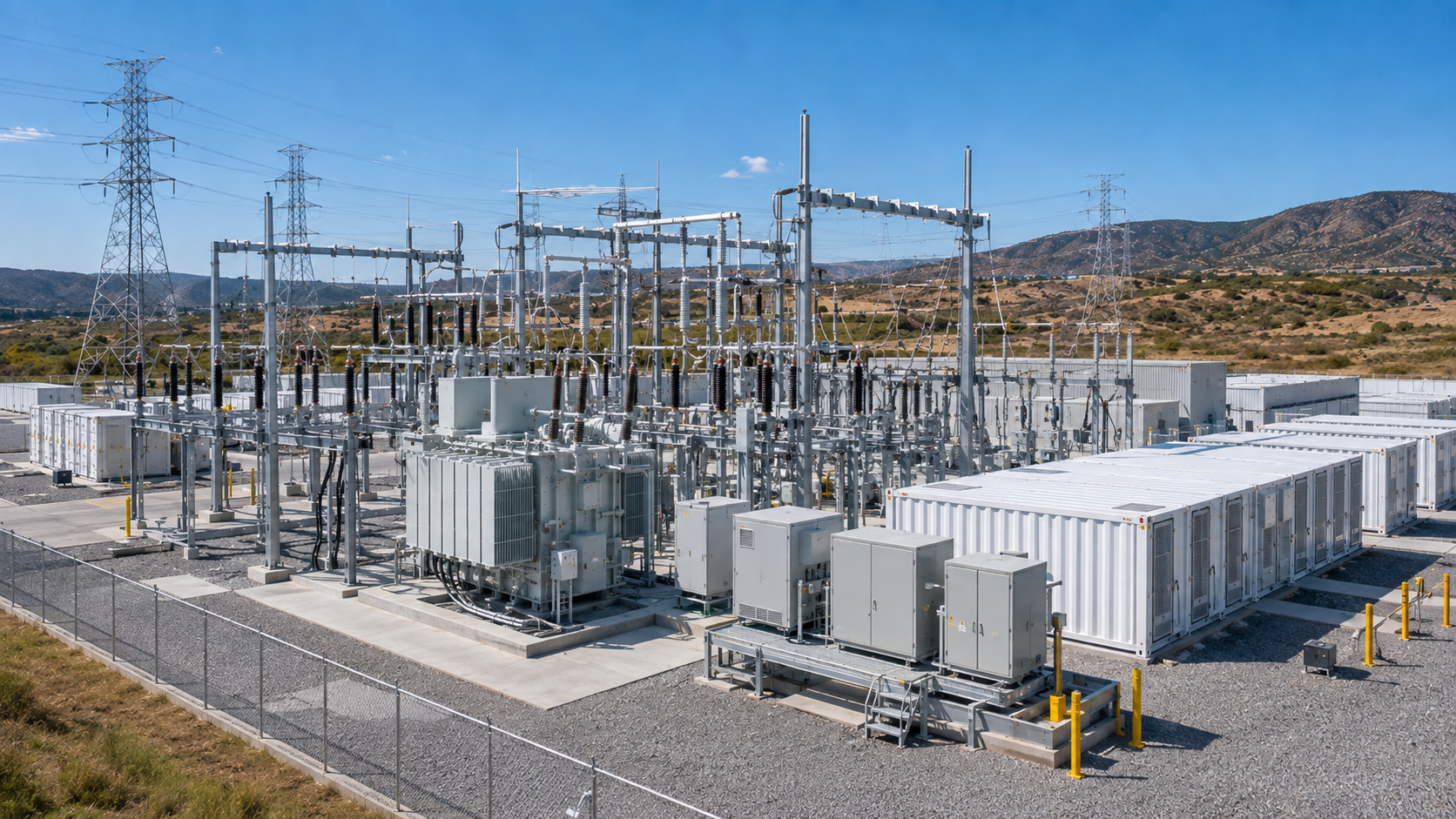

Substation & Grid Connection
Main transformers, switchgear and substation equipment connect energy storage systems to medium- and high-voltage networks.

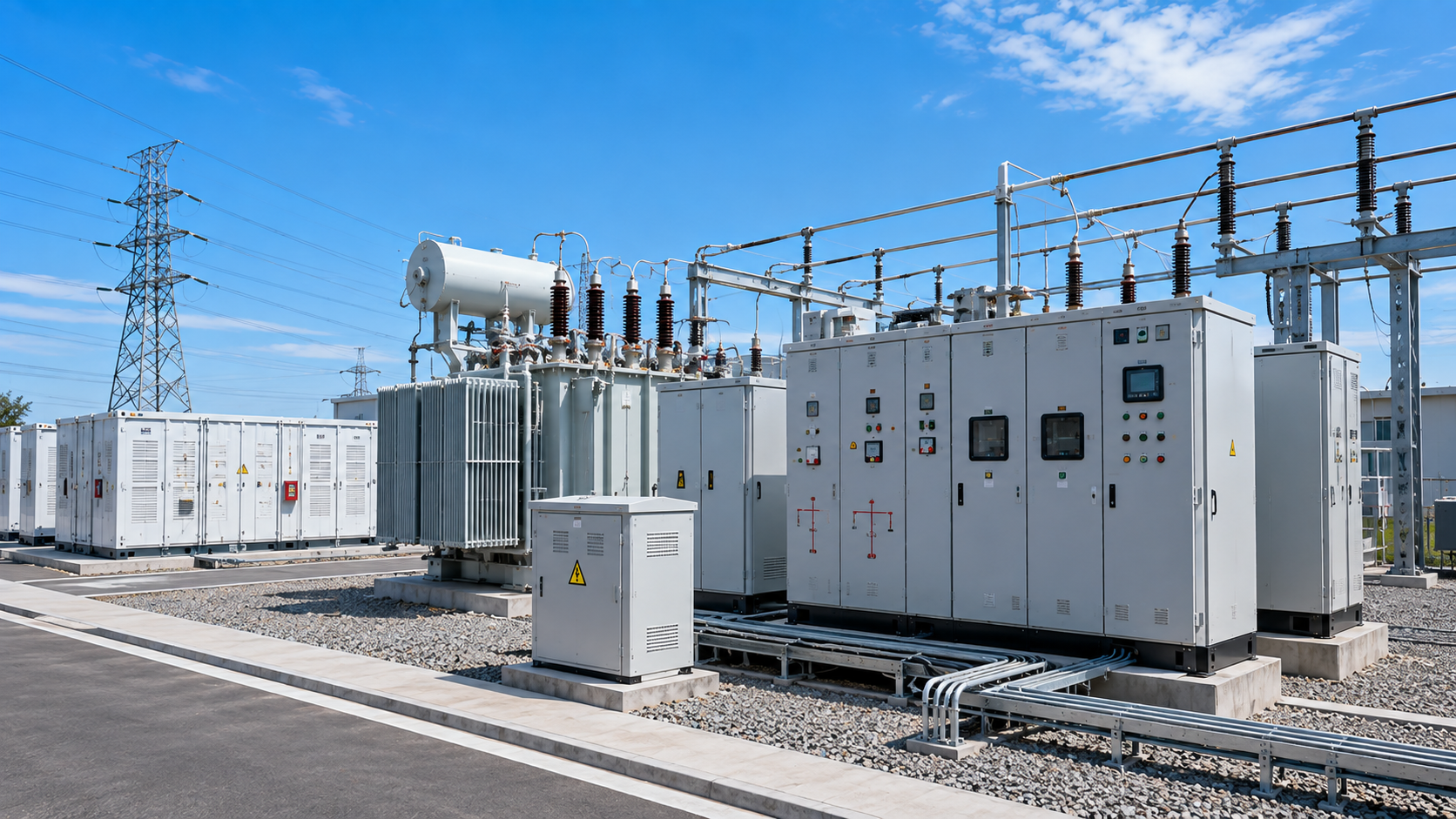

Transformer & Distribution Equipment
Transformer and distribution equipment can be configured around PCS voltage, project capacity and grid connection requirements.
